Fundición y Maquinado OEM Personalizado
Custom OEM Pump Casting & Machining
Exotic Alloy Specialists — From Single Emergency Parts to Full Production Runs
Beyond standard replacement parts, our foundry and CNC machine shop delivers fully custom OEM casting and machining services for the most demanding chemical process pump applications. Whether you need a single emergency component or a production run in an exotic alloy, we deliver — with full MTR certification and PMI verification on every order.
In-House Capabilities
Every project is managed end-to-end in our facility — from pattern-making and casting through final CNC machining and NDE inspection.
Casting
Sand casting, lost foam, and V-process. Up to 2,000 kg pour weight. Pattern-making from drawings, samples, or 3D scans.
CNC Machining
5-axis CNC, turning centers, boring mills. Precision tolerances to ±0.01 mm for the most demanding specifications.
Testing & QC
Hydrostatic pressure testing, PMI (Positive Material Identification), Ultrasonic Testing (UT), and Liquid Penetrant (LP) inspection.

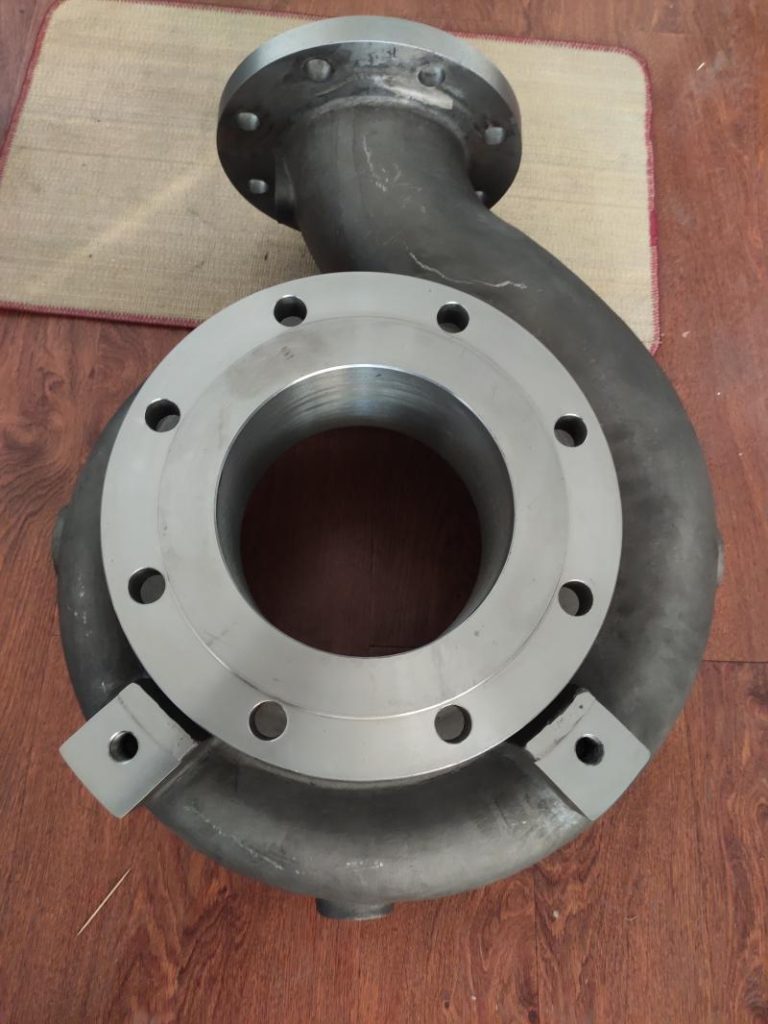

Reverse Engineering
Full 3D scanning and CAD reconstruction of discontinued or obsolete pump components from physical samples.
Exotic Alloy Portfolio
We cast and machine the full spectrum of high-performance alloys for chemical process service. Every order includes full EN 10204 3.1 MTR certification and PMI verification.
| Alloy | ASTM Spec | Key Application |
|---|---|---|
| 316SS (CF8M) | ASTM A743 | General chemical processing |

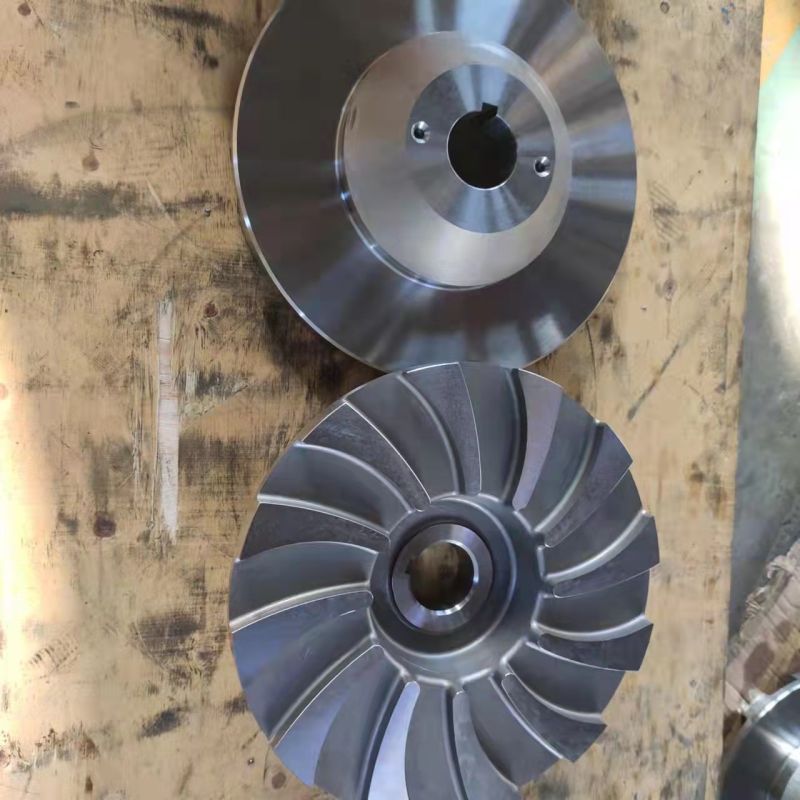

| CD4MCuN (Duplex) | ASTM A890 Gr. 1B | Seawater, high-chloride |
| Alloy 20 (CN7M) | ASTM A743 | Sulfuric acid service |
| Hastelloy B (N-12MV) | ASTM A494 | Hydrochloric acid (reducing) |
| Hastelloy C-276 | ASTM A494 CW12MW | Mixed acids, wet chlorine |
| Nickel 200 | ASTM A494 CZ100 | Concentrated caustic soda |
| Monel (M-35-1) | ASTM A494 | Hydrofluoric acid, seawater |
| Titanium Gr.2 | ASTM B367 Gr. C-3 | Nitric acid, oxidizing chlorides |
| Titanium Pd7B | ASTM B367 Gr. C-8B | High-temp chloride crevice |
| Zirconium 702 | ASTM B752 | HCl all concentrations, extreme corrosion |
Start Your Project
Send us your drawing, sample, or specification — we’ll quote within 48 hours.
