⚡ Executive Summary: Corroded Durco Mark III casing? Replace with a 100% dimensional match in severe-service alloy (Alloy 20, Hastelloy C, CD4M, Titanium). Full MTRs, CMM reports, 4-8 week delivery — 30-40% below OEM pricing.
When the Casing Goes, Production Stops

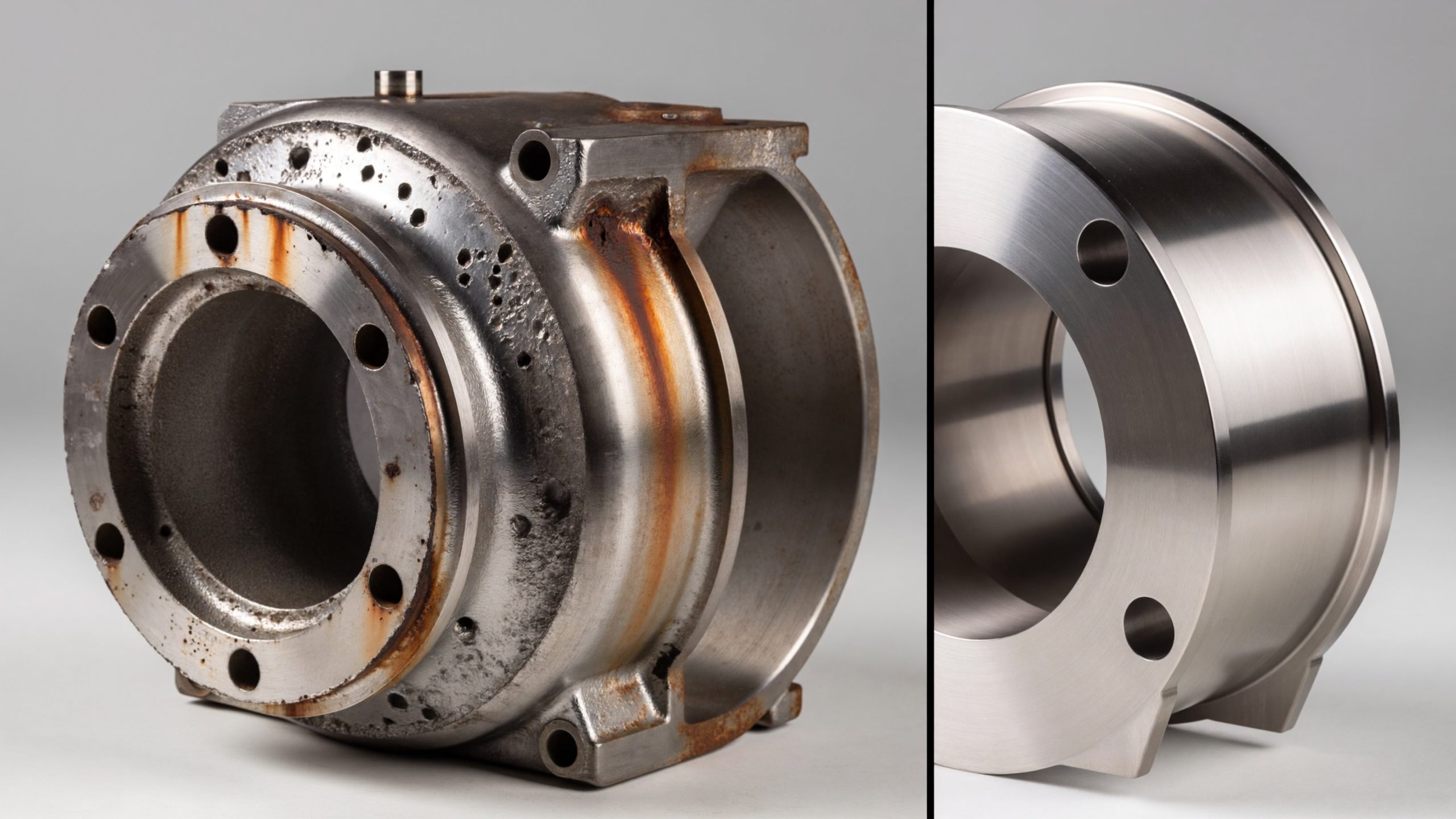

The pump casing is the single most expensive and longest-lead-time component in an ANSI process pump. When corrosion eats through a Durco Mark III casing wall, you face a hard choice: replace the entire pump assembly, or replace just the casing.
The OEM route: 16–24 weeks, $5,000–$15,000 for a single alloy casing. The smarter route: a 100% dimensionally compatible casing in the exact alloy your process needs, 4–8 weeks, 30–40% less.
If your pump is currently down due to a casing failure, contact our emergency response team → We will check in-stock availability immediately.
Why Casings Fail — And the Right Upgrade Fixes It Permanently
| Failure Mode | Root Cause | You Were Using | Upgrade To | Life Improvement |
|---|---|---|---|---|
| Uniform wall thinning | Acid attack beyond 316SS capability | 316SS | Alloy 20 (H₂SO₄) or Hastelloy C (mixed acids) | 5-10× longer |
| Pitting / crevice corrosion | Chlorides >50 ppm, >140°F | 316SS | CD4MCuN or Titanium | Virtually immune to Cl-SCC |
| Erosion-corrosion | High-velocity solids + corrosive fluid | 316SS | CD4MCuN (255-290 BHN) | 3-5× longer |
Mark III Casing — 7 Interfaces That Must Match Exactly
For a replacement casing to install without piping modifications, these must be exact:
| Interface | Measurement Method | Acceptable Tolerance |
|---|---|---|
| Suction flange centerline elevation | From baseplate mounting surface | ±0.03 in |
| Discharge flange centerline elevation | From baseplate mounting surface | ±0.03 in |
| Suction-to-discharge face distance | Flange face to flange face | ±0.06 in |
| Casing foot bolt pattern | Hole spacing and slot dimensions | ±0.03 in |
| Frame register (spigot) | Diameter & depth at bearing housing interface | ±0.002 in |
| Seal chamber bore & depth | Where mechanical seal cartridge mounts | ±0.002 in |
| Wear ring bore diameter | Casing ring seat | Per OEM clearance |
Every casing we ship is CMM-verified against these 7 interfaces. The dimensional report is included with your shipment — so you know it fits before you unbolt the old one.

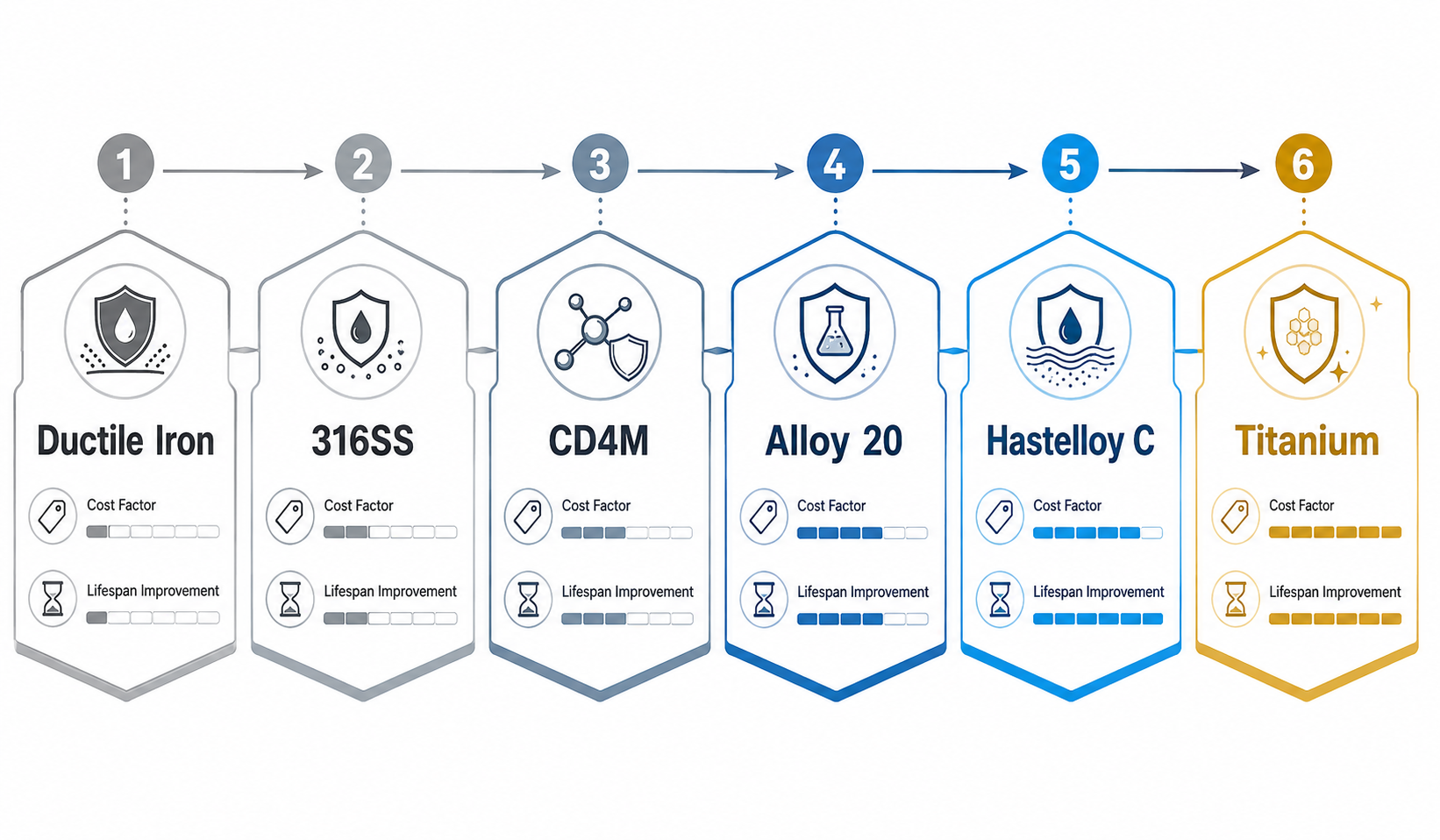

Material Upgrade Path — From Standard to Severe Service
| Current Material | Failure You See | Upgrade To | Cost vs. Current | Life Gain |
|---|---|---|---|---|
| Ductile Iron (D-2) | General acid corrosion | 316SS (D-4) | 2.5× | 3-5× |
| 316SS (D-4) | Chloride pitting | CD4MCuN (D-9) | 1.5× | 3-5× |
| 316SS (D-4) | Sulfuric acid >10% | Alloy 20 (D-6) | 2.5× | 5-10× |
| 316SS (D-4) | Mixed acid + chlorides | Hastelloy C-276 (D-8) | 4.5× | 10×+ |
| Alloy 20 (D-6) | Hot chloride attack | Titanium Gr.2 | 1.4× vs. Alloy 20 | Indefinite in chlorides |
⚠️ Material Certification & Traceability
Every severe-service alloy casing ships with: OES chemical analysis (full elemental breakdown per ASTM), mechanical test results (tensile, yield, elongation, hardness), PMI verification (XRF on the actual casting surface), hydrostatic test certificate (1.5× MAWP, 30-minute hold), and heat treatment chart (time-temperature trace). Full material traceability from heat number to your receiving dock.
6-Step Replacement Process
- Measure & Document — model, serial, material grade, flange drilling, custom features
- Identify Failure Mechanism — photos, process fluid composition, temperature, pH
- Request Material-Specific Quote — we recommend optimal alloy + confirm dimensional fit
- Verify Certifications Before Shipment — review MTRs, hydro certificate, CMM report
- Inspect on Arrival — CMM report vs. your measurements; XRF verification if available
- Install & Commission — bolts to existing bearing housing, accepts existing seal and impeller, connects to existing piping — no modifications
🔗 Related Reading
Get a Casing Replacement Quote
📋 Request a Quote — Response Within 24 Hours
Our engineering team reviews every inquiry and provides a detailed quote with compatibility confirmation.
